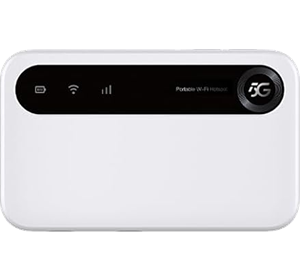

ZTE U50 5G Mifi
Find the help you need
Motherboard
Chipset
Qualcomm Snapdragon X55
Body
Dimensions (mm)
180x118x72
Weight (g)
164
Battery
Battery life
Up to 8 hours
Battery capacity
4500mAh
Connectivity
Personal hotspot
Yes
For up to 32 devices
For up to 32 devices
Frequency band
2.4GHz
Dual-Band
Dual-Band
SIM type
Nano SIM
LTE
Yes - LTE/UMTS
TDD category 20
FDD: DL 2.63 Gb/s, UL 525Mb/s
TDD DL 2.31 Gb/s, UL 465 Mb/ s
FDD peak rates require:
DL: 256QAM + 5CA + 4MIMO
UL: 64QAM + 2CA intra-band and interband
TDD peak rates require:
DL: 256QAM + 5CA + 4MIMO
UL: 64QAM + 2CA intra-band and interband
TDD frame config 2 (DL/UL ratio 7:2)
TDD category 20
FDD: DL 2.63 Gb/s, UL 525Mb/s
TDD DL 2.31 Gb/s, UL 465 Mb/ s
FDD peak rates require:
DL: 256QAM + 5CA + 4MIMO
UL: 64QAM + 2CA intra-band and interband
TDD peak rates require:
DL: 256QAM + 5CA + 4MIMO
UL: 64QAM + 2CA intra-band and interband
TDD frame config 2 (DL/UL ratio 7:2)
Network
3G
3G B1/8
4G
4G B1/3/7/8/20/28/32/38/40/42/43
5G
5G FDD n1 bands /3/7/8/20/28/38/40/77/78
5G+ EN-DC downlink rate up to 2.63Gbps
Sub6G bandwidth 20MHz, 40MHz, 50MHz, 60MHz, 80MHz, 90MHz, 100MHz
Sub6G: 30KHz, 15KHz
Supports 5G uFi NSA and SA networks
CP-OFDM for UL&DL
DFT-s-OFDM for UL
mmW: 120KHz
Sub6G DL peak rates requires: 100MHz + 256QAM + 4MIMO 75% DL duty cycle
Sub6G UL peak rates requires: 100MHz + 256QAM 92.5% duty cycle
5G+ EN-DC downlink rate up to 2.63Gbps
Sub6G bandwidth 20MHz, 40MHz, 50MHz, 60MHz, 80MHz, 90MHz, 100MHz
Sub6G: 30KHz, 15KHz
Supports 5G uFi NSA and SA networks
CP-OFDM for UL&DL
DFT-s-OFDM for UL
mmW: 120KHz
Sub6G DL peak rates requires: 100MHz + 256QAM + 4MIMO 75% DL duty cycle
Sub6G UL peak rates requires: 100MHz + 256QAM 92.5% duty cycle
VoLTE
Yes
Wi-Fi
Wi-Fi 6 AX3600
Memory
Device memory
512MB/512MB SDRAM/NAND
Security
Security features
PP2P/L2TP protection
VPN
PP2P/L2TP/IPSec, UPnP, DMZ, port forwarding, IP/MAC/Port/URL filter
Warranty
Device warranty
24 months
Compatibility
App compatibility
ZTE LINK app
Connections
USB port
USB Type C 2.0 port
Wireless network connection
4x4 MIMO up to 5 frequencies maximum
Power
Rechargeable
Yes
Function
Appliance features
Supports any 32 Wi-Fi enabled devices
256QAM modulation for download and sending
256QAM modulation for download and sending
Connection type
Antenna
2x TS9 ports
Operation
Operating temperature
-20 to 55°C
Operating humidity
5-95%
